Détails sur le produit:
|
| Structure: | Tubulaire | Installer Style: | Vis |
|---|---|---|---|
| Haute tension: | AC900V.3mA/s | Type de bobine: | Feuilleté |
| Style de montage: | Enfilé | Type de connecteur: | VACARME |
| Usage: | équipement de batterie d'aspiration | Garantie: | Coutume |
| Type de joint: | IP65 | Forme: | Cylindrique |
| Type de montage: | Enfilé | Spécification et taille: | 07*30（mm） |
| Forcer: | 100n | Protection contre la pénétration: | IP65 |
| Tension: | 12V |
| Specification | |||
| Brand | Landa | Product Name | Landa Lifting Electromagnet H5231Powerful 500N Force Circular Holding Magnet |
| Model | H5231 | Voltage | DC 12v 24v |
| Power | 2W | Force | 500N |
| Waterproof Class | IP65 | Duty Cycle | 10%-100% |
| Cable Length | 200mm | Material | Metal. Electronic Parts |
| Action Form | Screw | Thread Size & Deepth(mm) | M12,2-M4/25,4 |
| Hi-Pot Test | AC 600V 50/60 Hz 2s | Insulation Class | B |
| Packaging Details | |||

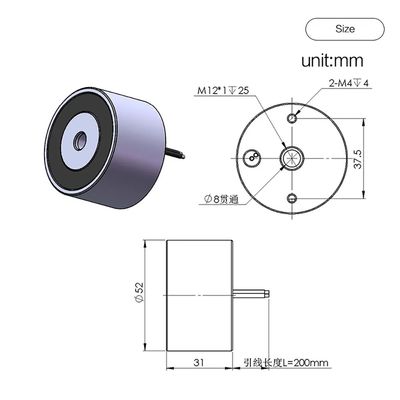

| Body Size | D52*H31(mm) | Carton Size(Standard) | 35*31*18(cm), accept custom |

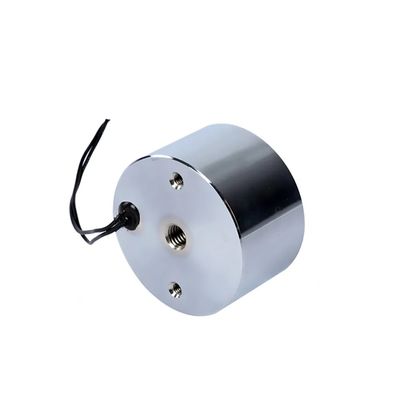

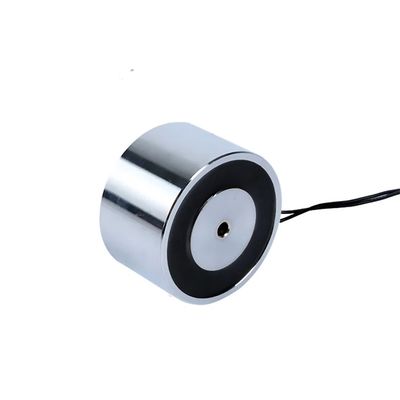

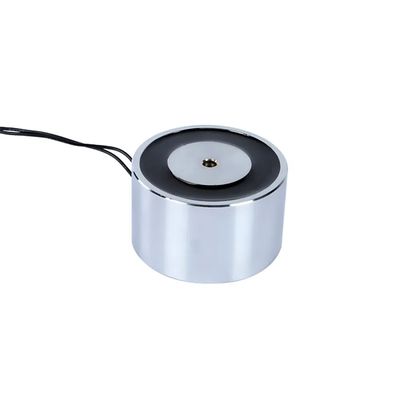

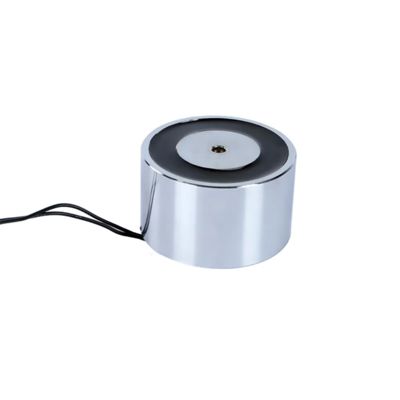

Round Electromagnet
1. Holding type, round shape, mini size, IP65 waterproof, DC 12v 24v standard voltage also accept custom.
2. The mini round electromagnet need to be energized to develop suction force and de-energized to release, widely used for holding of ferromagnetic workpieces during machining or assenbly, safety mechanisms, selector devices in textiles machinery, door latching holdback devices and etc.
3. Energized to hold and de-energized to release. We also offer an optional spring loaded ejected pi to overcome residual magnetism, as well as optional armature plates as a magnetic counterpart for optimum performance.
4. Also offer custom shape and supply energized-to-relaese mini dc electromagnet.
| Our Product | circular holding electromagnet, square holding electromagnet, open frame solenoid, tubular solenoid, keep solenoid, electromagnet lock, solneoid lock |
| MOQ | 2 pcs, small orders can be acceptable if we have stocks of this product |
| Packaging | carton, standard dimension(L*W*H): 35*31*18 CM, suctomize according yo customer's requirement |
| Delivery Time | shipped in 5-20 days after payment (decided by the order quantity and stock) |
| Supply Ability | 5000 pcs per month |
| Payment Terms | T/T, paypal, etc. |
| Shipping | sea freight, air freight, express (DHL, UPS, FEDEX, EMS and etc. ) |
