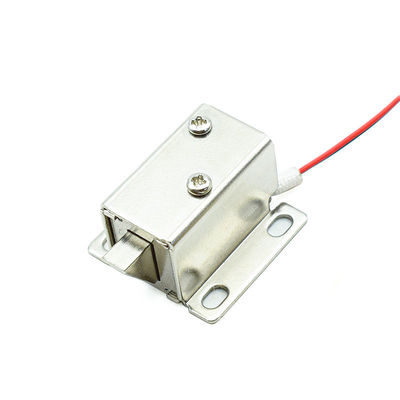

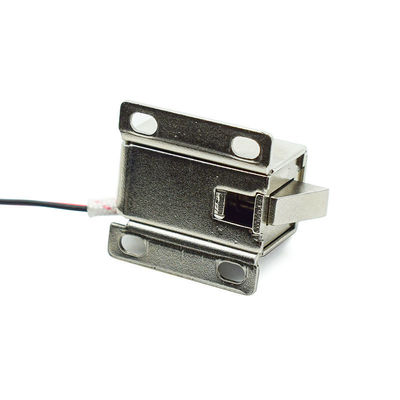

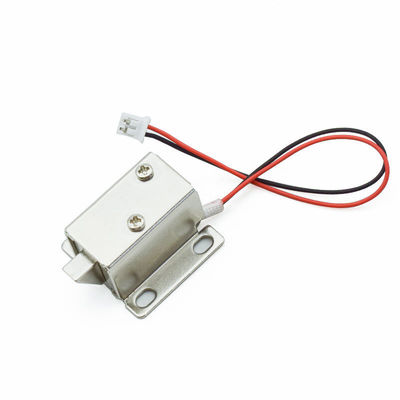

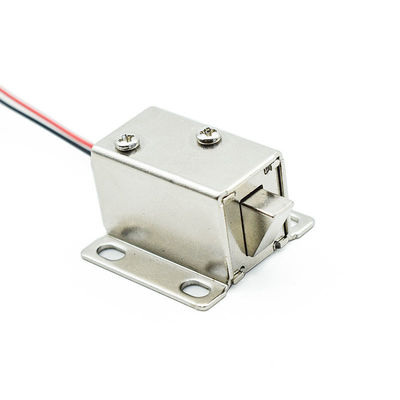

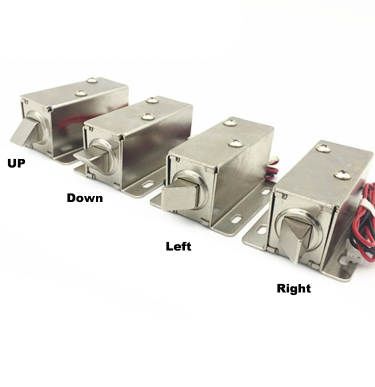

Down/Up 5v 6v 12v 24v Dc Mini Push Pull Solenoid Lock for Cabinet Door
description de
Place of Origin
China
Brand Name
Dason
Product name
6v 12v 24v Dc Mini Push Pull Solenoid Lock for Cabinet Door
Material
iron
Keyword
solenoid lock
Voltage
12v 24v dc
Valve type
High Performance
Certification
CE RoHS ISO
Suitable for
Security Storage
Type
Push Pull
Application
Wide Application
MOQ
20pcs
Packaging and delivery
Selling Units
Single item
Single package size
5.4X2.8X2.35 cm
Single gross weight
0.300 KG
Products Specifications
Brand
Product Series
solenoid lock
Model
SHF-0527L
Voltage
24v dc
Power
28.8w
Versions
Pull
Cable Length & connectors
130mm
Materials
steel
Action Form
push pull type
Weight (N.W.)
0.05kg
Install style
Screw
Thread size & Deepth(mm)
Standard
Hi-Pot Test
AC 600V 50/60Hz 2s
Insulation Class
B
Packaging details
Package size/pcs(mm)
27*28*17.5mm
Packaging box size(cm)
standard:21*14*13(cm), custom accepted
Product Features
1. Made of high quality pure carbon steel, electrophoretic paint surface treatment, corrosion resistance
2. Adjustable elasticity, suitable cabinet door, automatically popped open with power on
3. Small size, regardless of the left and right, easy to install
4. Working mode: independent (power-off door locking, power-on instant trigger open lock)
5. More than 1 millon times under rated working conditions, the locking hook can carry 150 kg class pull without obvious
deformation
Q: Are you trading company or manufacturer? A: We are original factory. Q:How to choose a solenoid/electromagnet? A:Following parameters should be provided: voltage(DC/AC), power, current, resistance, stoke, force, dimension limit, force,residual force, duty cycle, etc. Q:How long is your delivery time? A:Generally it is 3-10 days if the goods are in stock, or it is 15-20 days if the goods are not in stock. It is according to quantity. Q:What is your terms of payment? A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment. Q:Is there any extra charges if we want you to print our logo or company name on your products or the packaging? A:There is no extra charges. Please offer us the LOGO files, and we will make it well on your product. Q:Where is your factory located? How can I visit it? A:Our factory is located in Zhongshan City, about 1.5 hours from Guangzhou Airport by car.
